Mechanical paving patch 8 meters
A heavy-type paving batten is a device intended for smoothing and profiling the last layer of substructure for paving stones, asphalt, concrete cubes or concrete tiles, on streets, squares, sidewalks and parking lots.
The heavy-type profiling batten is also used to perform ballast (sand and sand-cement) under this type of surface.
Its structure and dimensions allow for increasing the work efficiency, additionally the applied canopy module optimizes to a large extent the time of the transverse falls (roof falls or channel sewage).
Technical Specifications
- scope of work: width from 1 m to 8 m
- smooth height adjustment from 0 to – 40 cm
- smooth adjustment of the strip width
- angle range of the roof connector from – 5% to 5% (the possibility of profiling convex – roof and concave – trough surfaces)
- auxiliary ruler
- massive structure, powder coated
Kit Contents:
- trolley with smooth height adjustment 2 pcs.
- canopy module 1 pc.
- module with smooth regulation 2 pcs.
- module 500 2 pcs
- module 750 2 pcs.
- module 1000 2 pcs.
Set weight: 480 kg

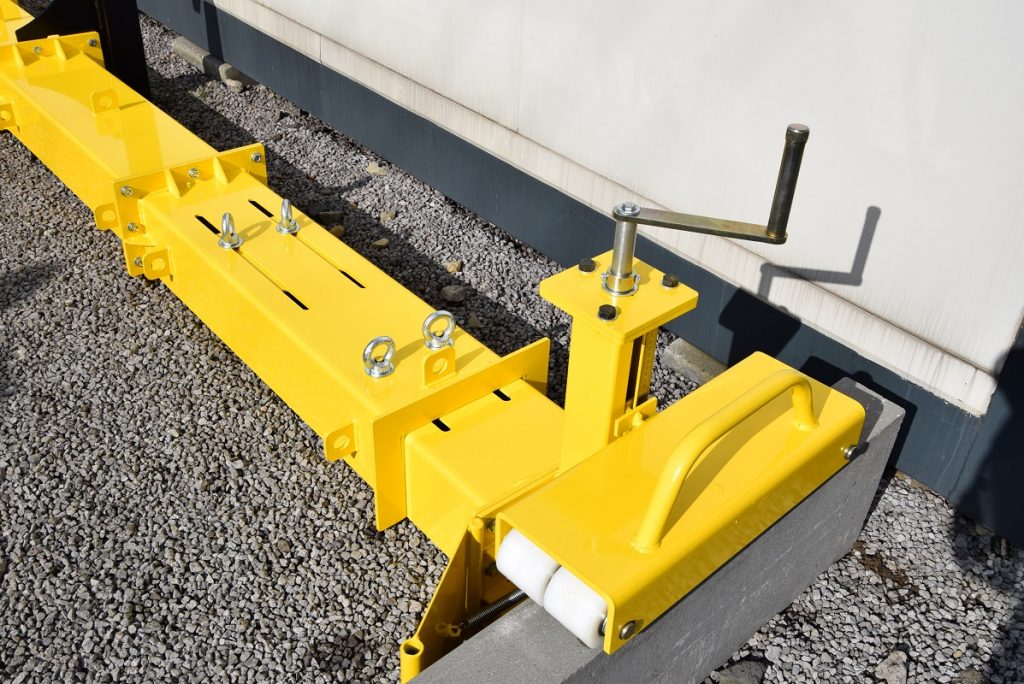

Rigid transport handles shown in the photos – optional
New equipment of Polish production. Certified with a guarantee.
We also offer a model that allows you to work in the range from 1 meter to 5.5 meters wide.
